    Products
    Automatic AB Glue Filling Machine(Floor Stand Type ) Automatic AB Glue Filling Machine(Floor Stand Type ) Automatic AB Glue Filling Machine(Floor Stand Type ) Automatic AB Glue Filling Machine(Floor Stand Type )
    Automatic AB Glue Filling Machine(Floor Stand Type )

    Product Number:DJ551/DJ771/DJ0815/DJ1010/DJ1224

    Product Brand:PINSU

    Product Description:

    Floor Stand Type Automatic AB Glue Filling Machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on.

    +86-400-7788-990
    • Product Parameters
    • Application Industry
    • App Video

    Machine Description

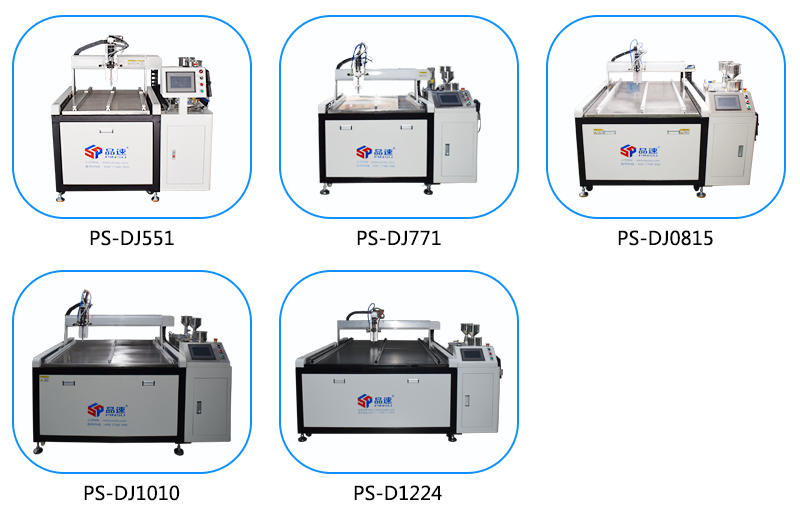

    Floor Stand Type Automatic AB Glue Dispensing Machine is also called floor type glue dispensing machine, gantry rack type glue filling machine, etc., which adds XYZ three-axis operation based on automatic glue dispensing; According to the proportion and type of ab glue to choose gear pump or screw pump (suitable for epoxy resin ab adhesive, polyurethane ab adhesive, silicone ab adhesive) and it can be applied to a wide range of products, such as LED fill light, aviation plug, touch switch, liquid crystal display, ballast, waterproof fan, plant light, waterproof power supply, sensor transducer, LED panel lights, wall washing lights, power supplies, chargers, transformers, mutual inductor, capacitors, filters, home appliance control panels, crystal porcelain paintings, sliding doors, photo frames, photo albums, screens, backdrops, floor tiles and other products.Machine Showcase


    Machine Parameter

    Machine name

    Floor Stand Type Automatic AB Glue Filling Machine

    Machine model

    PS-DJ551

    PS-DJ771

    PS-DJ1010

    PS-DJ0815

    PS-DJ1224

    Machine sizeL*W*H

    95*128*148CM

    115*147*148CM

    135*178*148CM

    159*196*148CM

    288*202*148CM

    Effective strokeX/Y/Z

    50*50*10CM

    70*70*10CM

    100*100*10CM

    80*150*10CM

    120*240*10CM

    Machine weight

    300Kg

    340Kg

    360Kg

    380Kg

    480Kg

    Material of charging bucket

    304 stainless steel

    Charging bucket capacity

    20L/30L/50L

    Cleaning bucket capacity

    5L

    Number of gluey nozzle

    2-30 gluey nozzles can be made according to the product.

    Range of glue dosing proportion

    1: 1-10:1

    Measurement method

    Gear pump or screw pump (optional)

    Measurement accuracy

    ±2%

    Glue dispensing accuracy

    ±2%

    Electronic control system

    Touch screen +PLC+ Intelligent motion control card (with teaching box)

    Operation mode

    The stepper motor drives the belt

    Operation track

    Points, lines, circles, arcs, rectangles, S-shapes, etc

    Operation speed

    Max 300mm/s

    Repeatability

    ±0.05mm

    Mixed model

    Static mixing or dynamic mixing

    Machine Power

    1000W-3500W

    Power supply

    AC 110V/60HZAC 220V/50HZ

    Operating pressure range

    0.5-0.8MPa


    Machine Feature

    1.AB glue can be automatically proportioning, automatic mixing, quantitative glue

    2. The glue output of AB glue and the time of glue output can be adjusted;

    3. The machine can realize the operation track of point, line, circle, arc, rectangle, S shape, etc., and the operation speed can be adjusted;

    4. Ab glue barrel comes with liquid level sensor, when the glue is insufficient, the system will remind to add glue;

    5. The machine comes with a cleaning device, which can automatically clean the mixing valve and mixing tube for next time use.



    Applicable Glue

    Floor Stand Type Automatic AB Glue Filling Machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on.

    Applicable Glue



    Scope of Application

    Floor Stand Type Automatic AB Glue Dispensing Machine can be used for LED fill light, aviation plug, touch switch, liquid crystal display, ballast, waterproof fan, plant light, waterproof power supply, sensor transducer, LED panel lights, wall washing lights, power supplies, chargers, transformers, mutual inductor, capacitors, filters, home appliance control panels, crystal porcelain paintings, sliding doors, photo frames, photo albums, screens, backdrops, floor tiles and other products.

    Scope of Application


    Prev:It is already the first one. Next:Handheld AB Glue pouring machine
