- AB Glue Filling Machine Circulating Conveyor Machine
-
Product Number：PS-DJ
Product Brand：PINSU
Product Description：
AB Glue Filling Machine Circulating Conveyor Machine for waterproof power supply, driving power supply, adapter, charger, ballast, intelligent water meter, explosion-proof electric box, motor, water pump, high-voltage package, inductors, capacitors, suction cups, display, circuit board and other products.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
AB Glue Filling Machine Circulating Conveyor Machine consists of 2 sets of gluing equipment and assembly line, which can realize the product 2 times of gluing, with the function of reflow, not only to reduce the manual handling of fixtures, but also to improve the production efficiency. Applicable 1:1-10:1 epoxy resin ab Glue, polyurethane PU Glue, silicone proportion filling. It can be applied to waterproof power supply, driving power supply, adapter, charger, ballast, intelligent water meter, explosion-proof electric box, motor, water pump, high-voltage package, inductors, capacitors, suction cups, display, circuit board and other products. In-line automatic glue filling machine reflow production line can be customized according to the needs of product gluing process, AB glue characteristics.
【Machine Parameter】
|
Machine name |
AB Glue Filling Machine Circulating Conveyor Machine |
|
Effective stroke（X/Y/Z） |
50*50*10cm |
|
Length of assembly line |
customizable |
|
Charging bucket capacity |
20L/30L//50L |
|
cleaning bucket |
5L |
|
Number of Dispensing Heads |
2 to 10 rubber nozzle can be made depending on the product can be made |
|
Range of glue dosing proportion |
1：1-10：1 |
|
Measurement method |
Gear pump or screw pump |
|
Measurement accuracy |
±2% |
|
Electronic control system |
Touch screen +PLC+Intelligent motion control card (with teaching box) |
|
Operation mode |
The stepper motor drives the synchronization belt |
|
Operation track |
Points, lines, circles, arcs, rectangles |
|
Operation speed |
Max 400mm/s |
|
Repeatability |
±0.03mm |
|
Mixed model |
Static mixing or dynamic mixing |
|
機(jī)器功率Machine Power |
220v/50HZ 4.5KW |
|
Operating pressure range |
0.5-0.8MPa |
【Process】
The product is placed on the fixture and transported to the first gluing area through the assembly line, and the machine automatically glues the product according to the program. When the product is finished, the product is transported to the second gluing station, after the gluing is finished, we will take down the product, and then transported to the lower assembly line through the lower board machine, back to the other end, through the upper board machine, the fixture will be transported to the upper assembly line to fill the gluing, and so on and so forth, the cycle of operation.
【Machine Feature 】
1. The design of the machine assembly line can realize the products to be filled with glue for many times;
2. Upper and lower assembly line design, fixtures can be returned to save the site area, reduce manual handling fixtures, improve production efficiency;
3. It can realize the automatic precise proportioning of ab glue, automatic mixing, and quantitative dispensing of glue;
4. The machine can be customized according to the product gluing process, glue characteristics;
5. The amount of glue, glue time can be manually controlled to ensure that the amount of glue is consistent;
6. xyz three-axis running module running speed can be adjusted to achieve point, line, circle, arc, rectangle, S-shaped trajectory.
【Applicable Glue】
AB Glue Filling Machine Circulating Conveyor Machine applied to 1:1-10:1 fixed ratio adjustable epoxy resin AB Glue, polyurethane PU Glue, silicone AB Glue and so on.

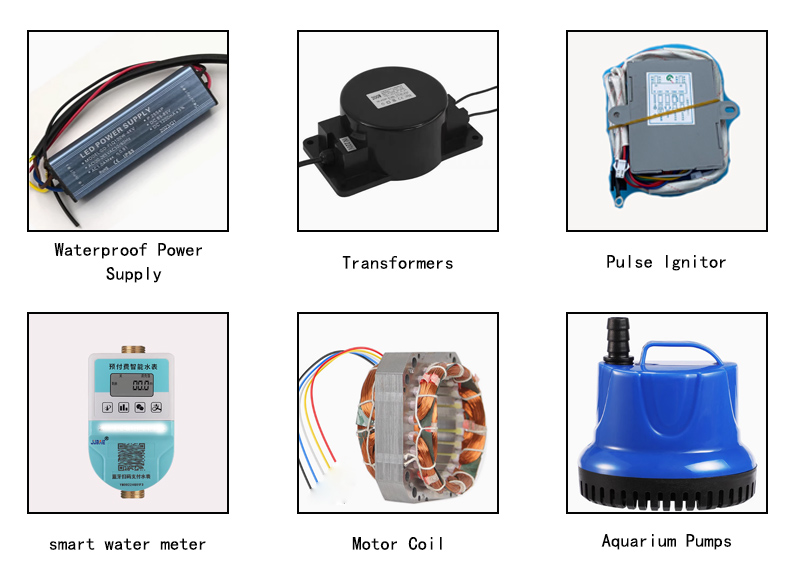

【Scope of Application】
AB Glue Filling Machine Circulating Conveyor Machine for waterproof power supply, driving power supply, adapter, charger, ballast, intelligent water meter, explosion-proof electric box, motor, water pump, high-voltage package, inductors, capacitors, suction cups, display, circuit board and other products.
