- 4 axis blowing type automatic screw machine
-
Product Number： PS-LS5331/PS-LS5441/PS-LS5551/
Product Brand：PINSU
Product Description：
4 axis blowing type autmatic screw machine is used for Home appliances, automotive electronics, instruments, toys, power supplies, cell phones, LEDs, tablet PCs, computer keyboards, etc.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
【Machine Description】
4 axis blowing type automatic screw machine can be used for screws in zigzag, Phillips row, flower-shaped, hexagonal rows, etc. Dual-position screwdriver can be attached to the product while locking the product while placing the product, high speed and high efficiency.
【Machine Parameter】
|
Machine name |
|
|
Machine model |
PS-LS5331/PS-LS5441/PS-LS5551/ |
|
Effective stroke（X/Y/Z） |
500*300*300*100mm |
|
500*400*400*100mm |
|
|
500*500*500*100mm |
|
|
Operation speed |
Belt MAX300mm/s Screw MAX500mm/s |
|
Repeatability |
Belt ±0.05mm Screw ±0.01mm |
|
Operating pressure range |
0.5-0.8mpa |
|
Machine Power |
400w |
|
Operation mode |
The stepper motor drives the belt or servo motor driven lead screw |
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
Supported Project Documents |
CAD/CORELDRAW |
|
Electronic control system |
Intelligent motion control card (with teaching box) |
|
Operating Temperature |
5-40℃ |
|
Humidity |
20-90% |
|
Applicable screws |
M2-M8 |
1. Mainly consists of screw automatic conveying system, X-Y-Z moving platform, control system;
2. Applicable to a variety of products. When replacing the product, only need to replace the fixture, the equipment program can be saved separately, the corresponding program can be transferred out;
3. Discharging is controlled by inductor, after locking one continues one, automatic discharging, there will be no repeated discharging phenomenon;
5. Good stability, no card products
6. High efficiency, generally 1 second to play a screw, do not have to grab the screw, just put the product on the jig to operate the equipment;
7. Equivalent to a worker screw locking operations, to achieve fully automated production, reduce the labor intensity of workers, improve productivity;
8. The key parts of the use of high-quality hardware materials, electronic components imported from the original to ensure that the equipment zero failure.

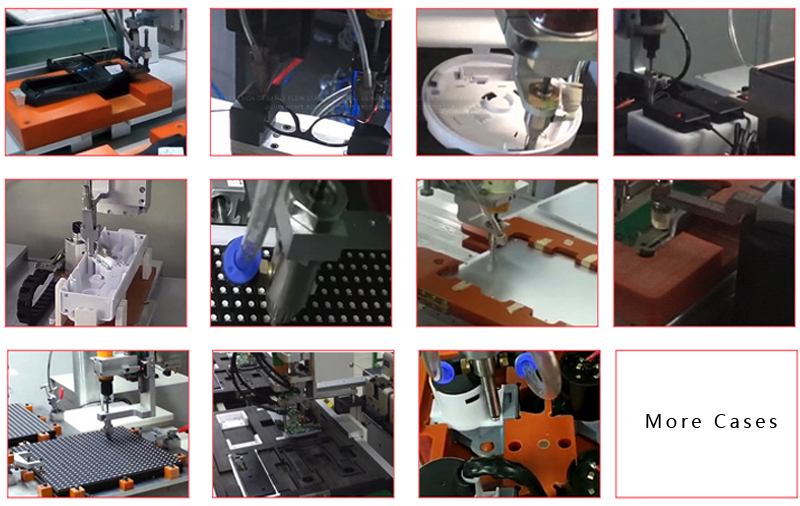

【Scope of Application】
4 axis blowing type autmatic screw machine is used for Home appliances, automotive electronics, instruments, toys, power supplies, cell phones, LEDs, tablet PCs, computer keyboards, etc.
