    Products
    2.6L Silicone Adhesive Automatic Dispensing Machine 2.6L Silicone Adhesive Automatic Dispensing Machine 2.6L Silicone Adhesive Automatic Dispensing Machine
    2.6L Silicone Adhesive Automatic Dispensing Machine

    Product Number:DJ331ZM/DJ551ZM/DJ5331ZM/DJ5551ZM

    Product Brand:PINSU

    Product Description:

    2.6L Silicone Adhesive Automatic Dispensing Machine apply to PCB boards, chips, monitors, pumps, instruments, chargers and other products.

    +86-400-7788-990
    • Product Parameters
    • Application Industry
    • App Video

    Machine Description

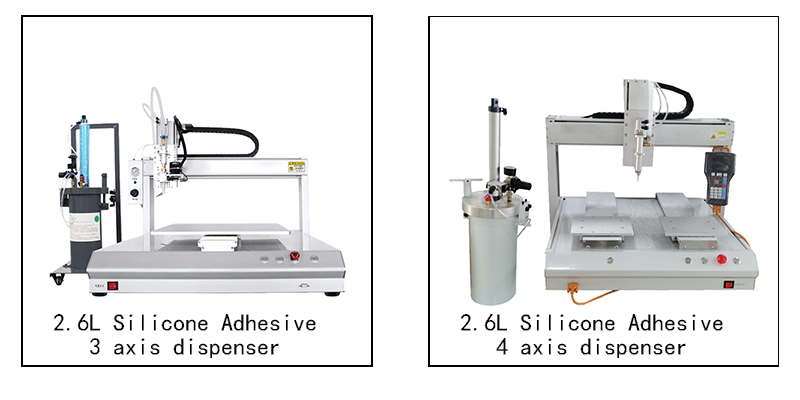

    2.6L Silicone Adhesive Automatic Dispensing Machine is divided into three-axis dispenser and four-axis dispenser according to the model, our machine is mainly used for 2600ml silicone, it has the characteristics of occupying the small ground, easy to operate and fast dispensing speed.

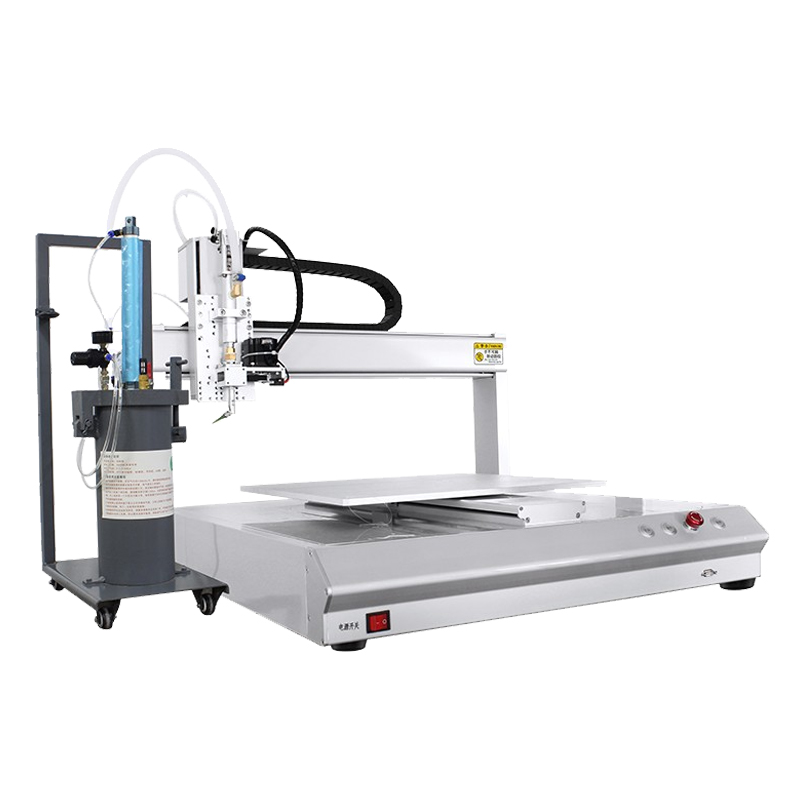

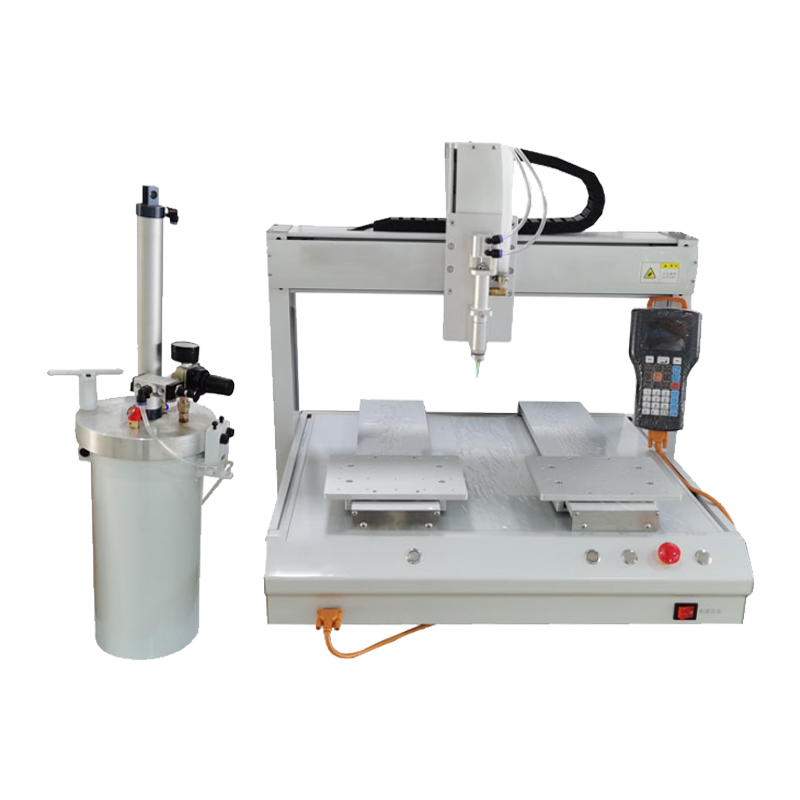

    Machine Showcase


    Machine Parameter

    Machine name

    2.6L Silicone Adhesive Automatic Dispensing Machine

    Machine model

    PS-DJ331ZM

    PS-DJ551ZM

    PS-DJ5331ZM

    PS-DJ5511ZM

    Effective strokeX/Y/Z

    30*30*10CM

    50*50*10CM

    50*(Y1&Y2) 30*10CM

    50*(Y1&Y2) 50*10CM

    Maximum load of synchronous belt

    X/Y-axis 5kg, Z-axis 3kg

    Maximum load of lead screw

    X/Y-axis 15kg, Z-axis 10kg

    Electronic control system

    Intelligent motion control card (with teaching box)

    Information storage space

    256MB

    Supported Project Documents

    CAD/ corelDRAW

    Operation mode

    The stepper motor drives the belt or servo motor driven lead screw

    Running trajectory

    Points, lines, circles, arcs, rectangles, S-shapes, etc

    Operation speed

    Max 300mm/s

    Repeatability

    ±0.05mm~±0.02mm

    Power supply

    AC 110V/60HZAC 220V/50HZ

    Machine Power

    400W

    Operating pressure range

    0.5-0.8MPa


    Machine Feature

    1. Small size footprint, easy to move;

    2. Adjustable running speed, can realize point, line, circle, arc, rectangle, S-type running track;

    3. Small noise, smooth running, repeatability± 0.05mm ~ ± 0.02mm;

    4. Applicable to a variety of glue. Adjustable amount and time of glue dispensing;

    5. Machine dispensing valve with suction function, fast stop dispensing, no leakage of glue drops, glue does not pull wire.

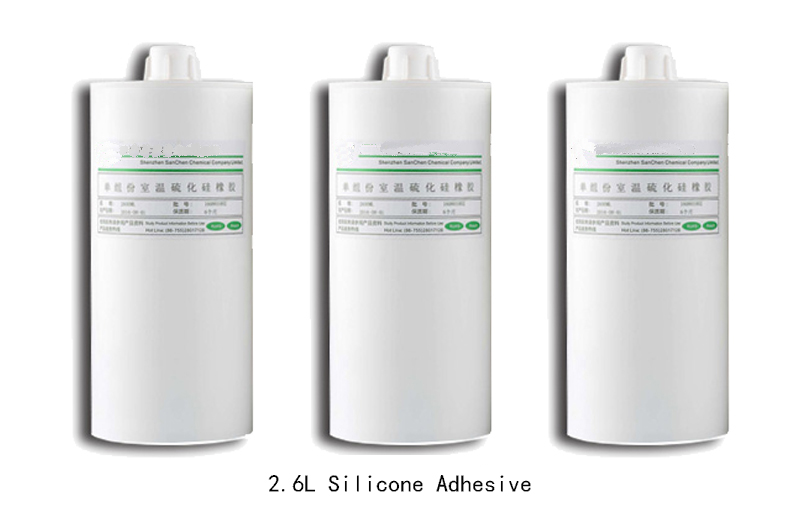

    Applicable Glue

    2.6L Silicone Adhesive Automatic Dispensing Machine is suitable for 2.6L silicone adhesive.


    Applicable Glue


    Scope of Application

    2.6L Silicone Adhesive Automatic Dispensing Machine apply to PCB boards, chips, monitors, pumps, instruments, chargers and other products.

    Scope of Application

    Prev:It is already the first one. Next:30L Silicone Adhesive Automatic Dispensing Machine
