- Rotary Automatic Glue Dispensing Machine
-
Product Number：DJ551ZMR/R/DJ331ZMR/R
Product Brand：PINSU
Product Description：
Rotary Automatic Glue Dispensing Machine applied to Plastic lids, electronic components, LEDs, cell phones.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
Rotary Automatic Glue Dispensing Machine can realize R-axis 360 degree tilt dispensing. It can be applied to UV Glue , AB Glue , black Glue , Varnish, white Glue , chlorprene Glue , EMI conductive Glue , quick-drying glue, aluminium paste, SMT red glue, solder paste and other glue.
【Machine Parameter】
|
Machine name |
Rotary Automatic Glue Dispensing Machine |
|
|
Machine model |
PS-DJ331ZM/R |
PS-DJ551ZMR/R |
|
Effective stroke（X/Y/Z） |
30*30*10CM |
50*50*10CM |
|
Machine weight |
50KG |
65KG |
|
（L*W*H）Machine size |
58.5*53.0*58.6 |
78.5*72.0*58.6 |
|
R-axis rotation angle |
R-axis 360 degree rotation |
|
|
Maximum load of synchronous belt |
X/Y-axis 5kg, Z-axis 3kg |
|
|
Maximum load of lead screw |
X/Y-axis 15kg, Z-axis 10kg |
|
|
Electronic control system |
Intelligent motion control card (with teaching box) |
|
|
Information storage space |
256MB |
|
|
Supported Project Documents |
CAD/ corelDRAW |
|
|
Operation mode |
The stepper motor drives the belt or servo motor driven lead screw |
|
|
Operation track |
Points, lines, circles, arcs, rectangles, S-shapes, etc |
|
|
Operation speed |
Max 300mm/s |
|
|
Repeatability |
±0.05mm-±0.02mm |
|
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
|
Machine Power |
400W |
|
|
Operating pressure range |
0.5-0.8MPa |
|
【Machine Feature 】
1. With drawing points, lines, arcs, circles, irregular curves dispensing function and three-dimensional dispensing;
2. Configuration of the suction device, the amount of glue is stable, no dripping and leaking glue.
3. With anti-curing function, can effectively prevent the glue curing blockage of the needle.
4. The size and thickness of the glue, the speed of applying glue, the dispensing time and the stopping time can all be set by parameters.
5. Large capacity file memory, can store 999 dispensing process files.
【Applicable Glue】
Rotary Automatic Glue Dispensing Machine suitable for UV Glue , AB Glue ,Black Glue , Varnish, White Glue , Chlorprene Glue , EMI conductive Glue , Quick-drying Glue, Aluminium Paste, SMT red glue, solder paste and other glue.

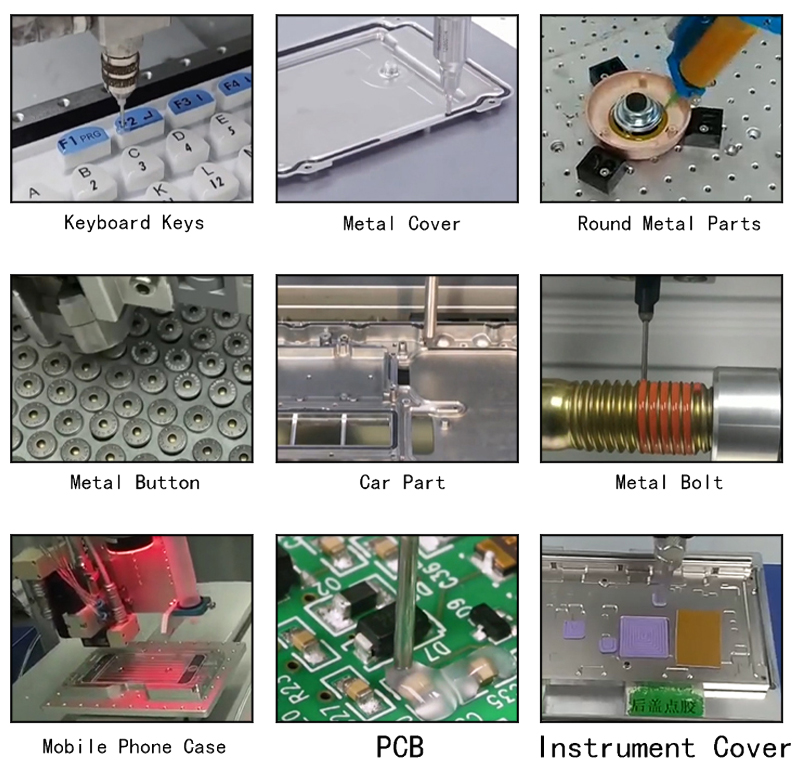

【Scope of Application】
Rotary Automatic Glue Dispensing Machine applied to Plastic lids, electronic components, LED, cell phones.
