- Desktop Automatic Dispensing Machine
-
Product Number：DJ331ZM/DJ551ZM/DJ5331ZM/DJ5551ZM
Product Brand：PINSU
Product Description：
Desktop Automatic Dispensing Machine apply to Electronics, power supply, cars, household electric appliance, electronic equipment, toys, cell phones and other industries product.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video

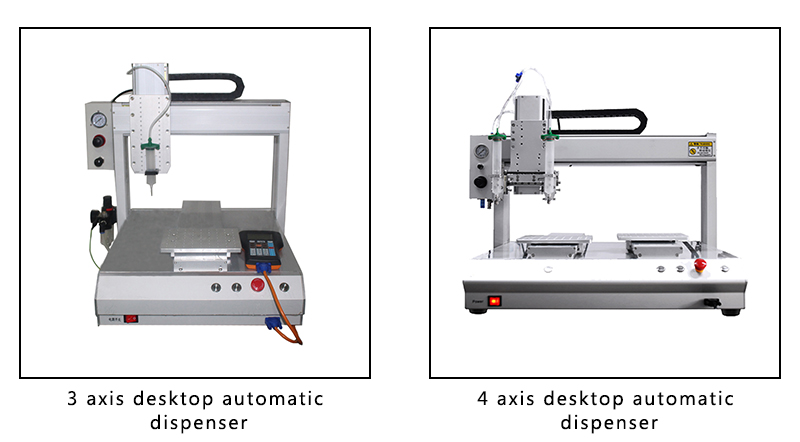

Desktop machine series is based on three-axis, four-axis control of a machine, can also be customized stroke. With different glue supply system, solder controller, screw feeder can realize different process requirements respectively. This machine can be placed on the countertop operation, not only compact and convenient, but also can realize automatic dispensing, automatic soldering, automatic screws and so on. According to the process needs to replace manual work, it can realize automatic production, simple and convenient. It can be applied to UV adhesive, two group AB adhesive, black glue, white emulsion, chlorprene adhesive, EMI conductive adhesive, quick-drying adhesive, aluminium paste, SMT red glue, solder paste, heat dissipation paste, anti-soldering paste, transparent lacquer, thread locking fluid and so on.
【Machine Parameter】
|
Machine name |
Three-axis desktop automatic dispenser |
Four-axis desktop automatic dispenser |
||
|
Machine model |
PS-DJ331ZM |
PS-DJ551ZM |
PS-DJ5331ZM |
PS-DJ5551ZM |
|
Effective stroke（X/Y/Z） |
30*30*10CM |
50*50*10CM |
50*Y1&Y2 30*10CM |
50*Y1&Y2 50*10CM |
|
Maximum load of synchronous belt |
X/Y-axis 5kg Z-axis 3kg |
|||
|
Maximum load of lead screw |
X/Y-axis 15kg, Z-axis 10kg |
|||
|
Electronic control system |
Intelligent motion control card (with teaching box) |
|||
|
Information storage space |
256MB |
|||
|
Supported Project Documents |
CAD/ corelDRAW |
|||
|
Operation mode |
The stepper motor drives the belt or servo motor driven lead screw |
|||
|
Operation track |
Points, lines, circles, arcs, rectangles, S-shapes, etc |
|||
|
Operation speed |
Max 300mm/s-Max 500mm/s |
|||
|
Repeatability |
±0.05mm-±0.02mm |
|||
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|||
|
Machine Power |
400W |
|||
|
Operating pressure range |
0.5-0.8MPa |
|||
【Machine Feature 】
1. Small size footprint, easy to move;
2. Adjustable running speed, can realize point, line, circle, arc, rectangle, S-type running track;
3. Small noise, smooth running, repeatability± 0.05mm ~ ± 0.02mm;
4. Applicable to a variety of glue. Adjustable amount and time of glue dispensing;
5. The machine is simple to operate and easy to learn.
【Applicable Glue】
UV adhesive, two group AB adhesive, black glue, white emulsion, chlorprene adhesive, EMI conductive adhesive, quick-drying adhesive, aluminium paste, SMT red glue, solder paste, heat dissipation paste, anti-soldering paste, transparent lacquer, thread locking fluid and so on.
【Scope of Application】
Desktop Automatic Dispensing Machine apply to Electronics, power supply, cars, household electric appliance, electronic equipment, toys, cell phones and other industries product.
