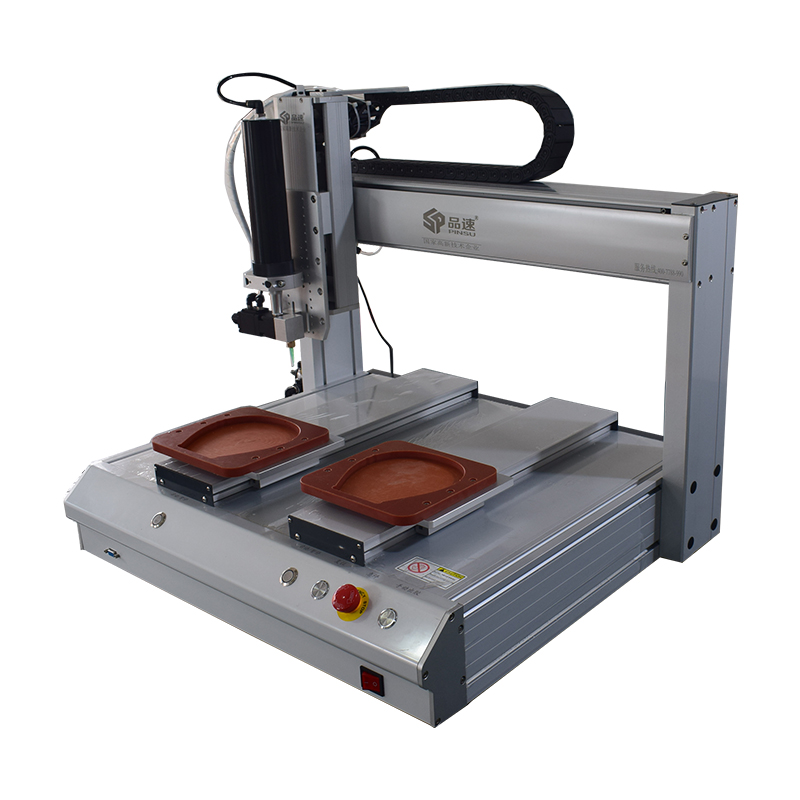

- 30L Silicone Adhesive Automatic Dispensing Machine
-
Product Number：331ZM/551ZM/5331ZM/5551ZM
Product Brand：PINSU
Product Description：
30L Silicone Adhesive Automatic Dispensing Machine use in Electrical appliances, cell phones, lighting, power supply and other industries.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
【Machine Description】

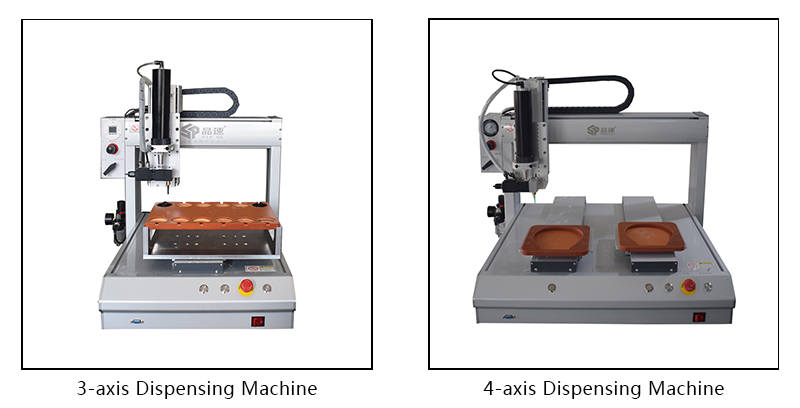

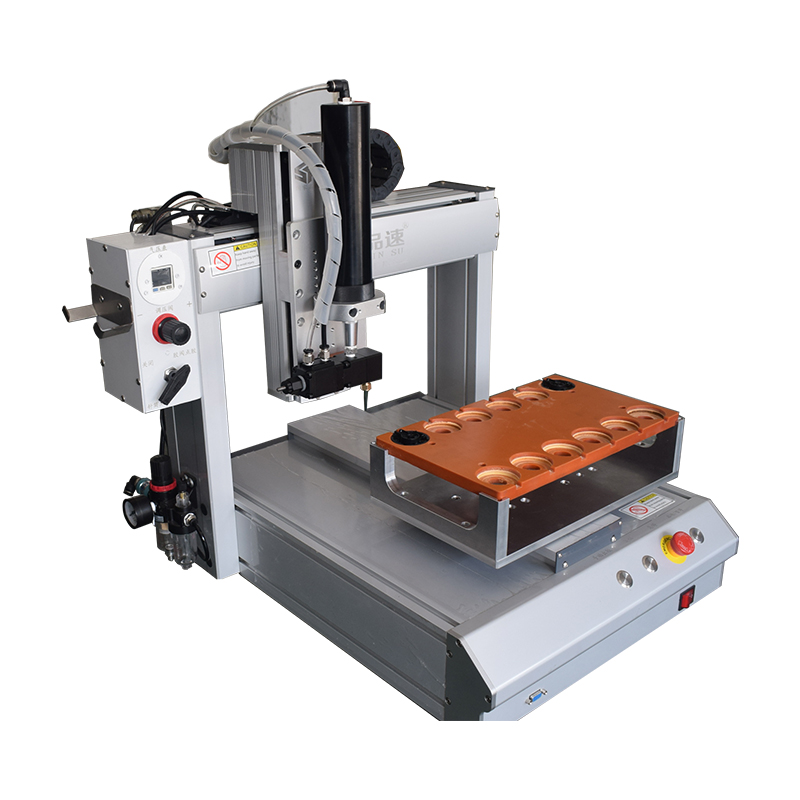

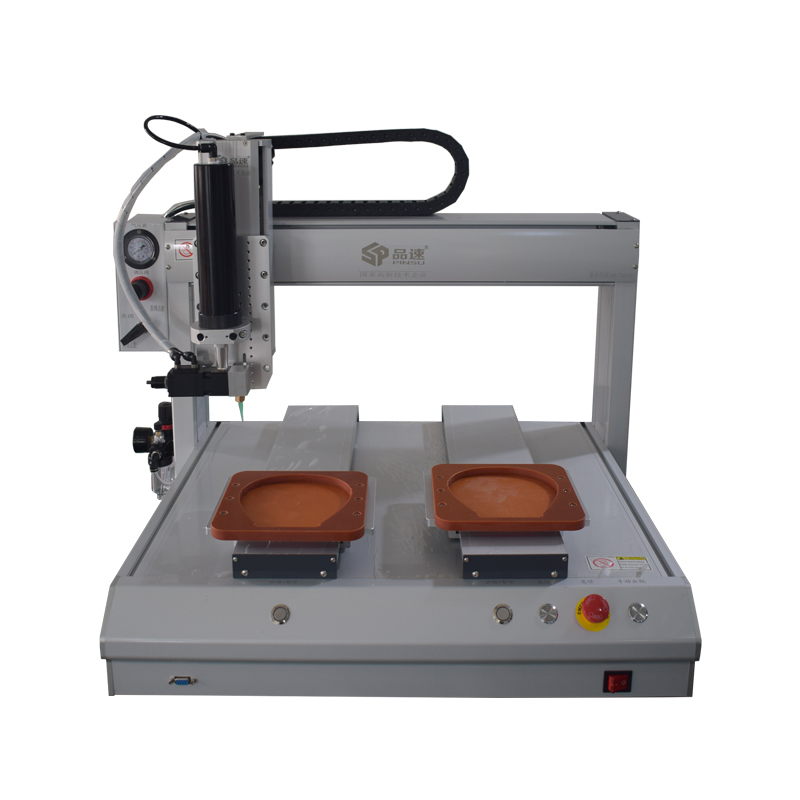

30L Silicone Adhesive Automatic Dispensing Machine is divided into three-axis operation and four-axis operation dispenser according to models, mainly using 300ml silicone adhesive, 300ml glass adhesive, 300ml sealing adhesive. The machine is characterized by small floor space, simple operation and fast dispensing speed.
【Machine Parameters】
|
Machine name |
||||
|
Machine model |
PS-DJ331ZM |
PS-DJ551ZM |
PS-DJ5331ZM |
PS-DJ5551ZM |
|
Effective stroke（X/Y/Z） |
30*30*10CM |
50*50*10CM |
50*(Y1&Y2)30*10CM |
50*(Y1&Y2)50*10CM |
|
Maximum load of synchronous belt |
X/Y-axis 5kg, Z axis 3kg |
|||
|
Maximum load of lead Screw |
X/Y-axis 15kg, Z-axis 10kg |
|||
|
Electronic control system |
Intelligent motion control card (with teaching box) |
|||
|
Information storage space |
256MB |
|||
|
Supported Project Documents |
CAD/ corelDRAW |
|||
|
Operation mode |
The stepper motor drives the belt or servo motor driven lead screw |
|||
|
Operation track |
Points, lines, circles, arcs, rectangles, S-shapes, etc |
|||
|
Operation speed |
Max 300mm/s |
|||
|
Repeatability |
±0.05mm~±0.02mm |
|||
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|||
|
Machine Power |
400W |
|||
|
Operating pressure range |
0.5-0.8MPa |
|||
【Machine Feature 】
1. Small size footprint, easy to move;
2. Adjustable running speed, can realize point, line, circle, arc, rectangle, S-type running track;
3. Small noise, smooth running, repeatability± 0.05mm ~ ± 0.02mm;
4. Applicable to a variety of glue. Adjustable amount and time of glue dispensing;
5. Machine dispensing valve with suction function, fast stop dispensing, no leakage of glue drops, glue does not pull wire.

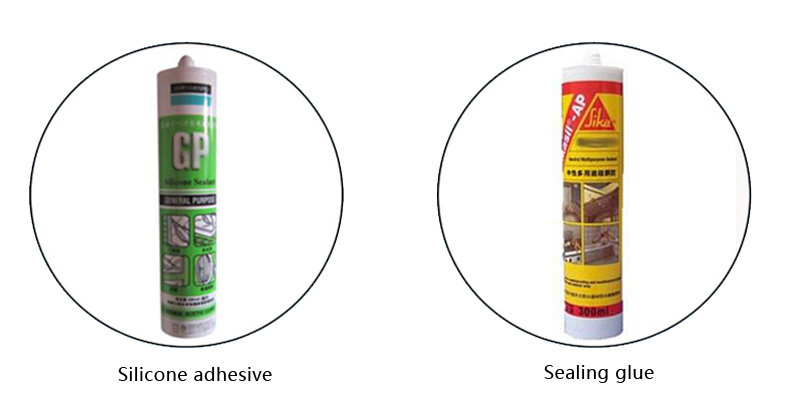

【Applicable Glue】
30L Silicone Adhesive Automatic Dispensing Machine suitable for 300ml silicone adhesive, 300ml sealing glue.

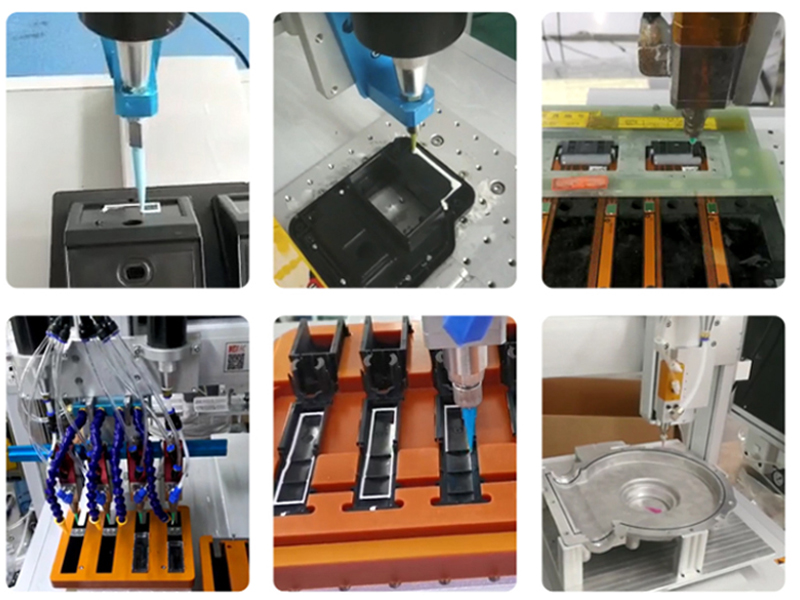

【Scope of Application】
30L Silicone Adhesive Automatic Dispensing Machine use in Electrical appliances, cell phones, lighting, power supply and other industries.
